UPVC Cross for Industry

Hot Product

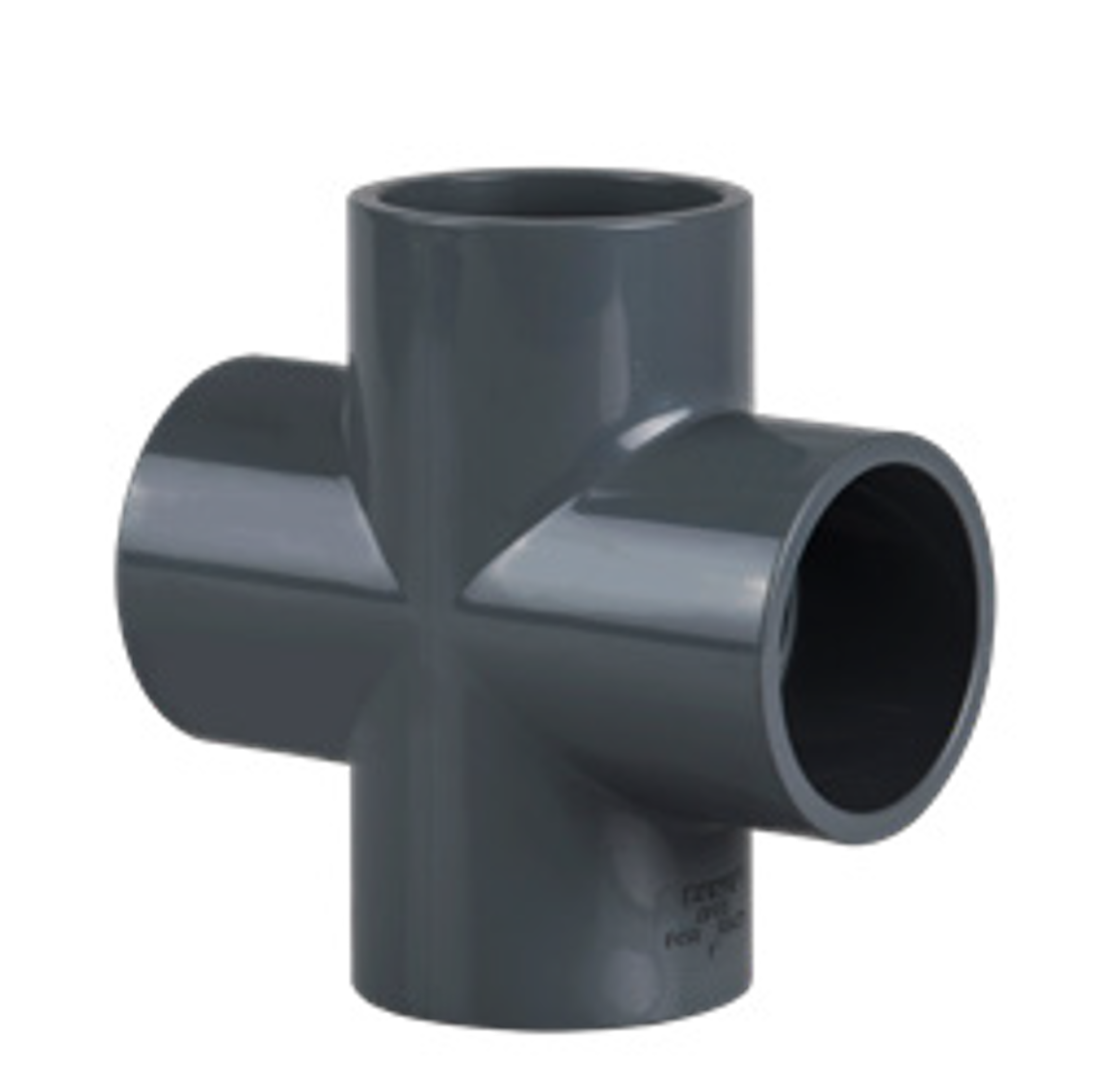

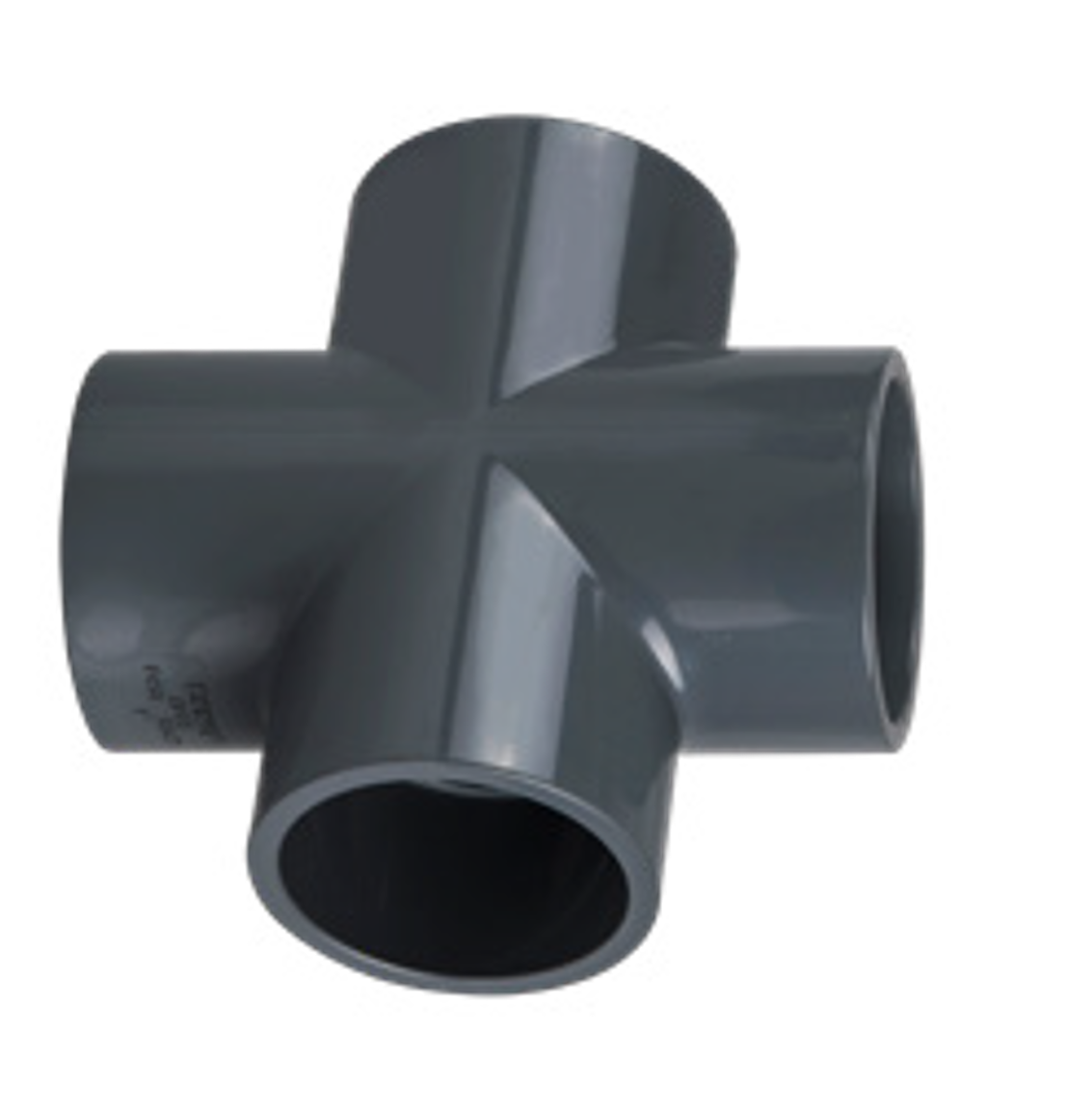

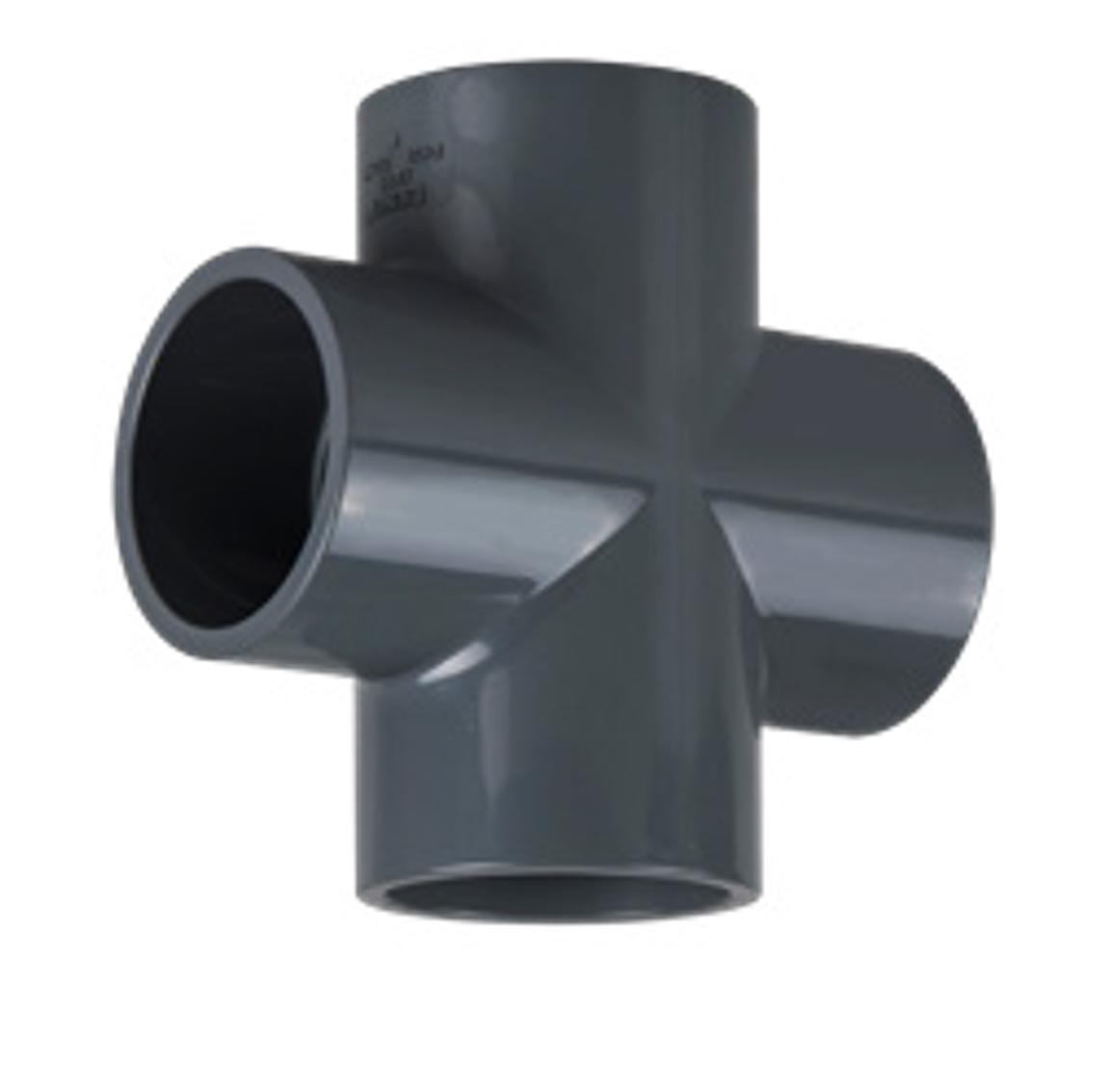

The UPVC Cross for Industry is a solvent-cement socket cross fitting for splitting flow from a main into four directions or combining four pipes in industrial piping systems.

Diameter Range: DN15 – 400mm
Pressure Rating: PN10, PN16
Applicable Standards: ISO 1452-3, ASTM D2467
Stock Availability: In stock
Sample Policy: Free sample available
Lead Time: 5–30 days

Request Quote Download Specs

Need help? Contact our technical support team

+86 1551559 6408

The UPVC Cross for Industry is a four-way solvent-cement socket fitting that enables multi-line distribution or collection in chemical and water treatment piping systems. Its one-piece reinforced junction provides high pressure capacity and reliable sealing.

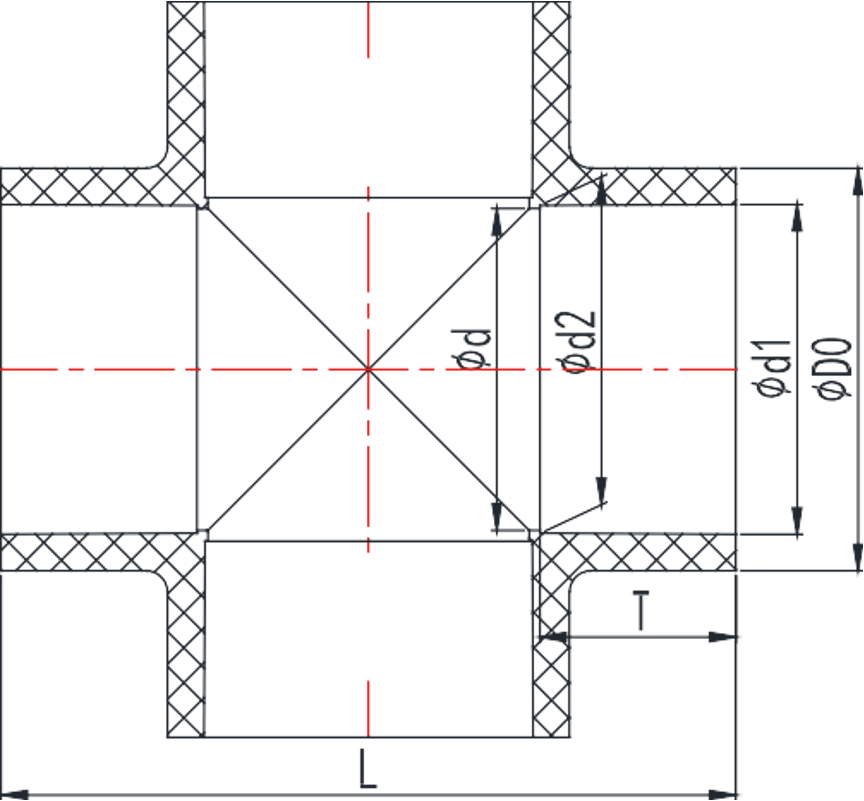

Size DN	Dimensions (mm)						Nominal Pressure PN(kg/cm²)
	D0	D1	D2	d	T	L
15	26.30	20.30	19.95	18.00	16.20	55.40	S5(PN20)
20	31.80	25.30	24.95	21.00	18.70	65.40	S5(PN20)
25	39.90	32.30	31.90	28.00	22.20	79.40	S5(PN20)
32	49.50	40.35	39.90	36.00	26.20	95.40	S5(PN20)
40	61.50	50.35	49.90	46.00	31.20	115.40	S5(PN20)
50	77.40	63.40	62.90	59.00	37.70	141.00	S5(PN20)
65	91.20	75.40	74.90	70.90	43.70	165.00	S6.3(PN16)
80	107.60	90.50	89.90	85.90	51.20	194.50	S6.3(PN16)
100	127.00	110.60	109.90	103.90	61.20	234.50	S6.3(PN16)
De125	144.30	125.70	124.90	118.90	68.70	263.80	S6.3(PN16)
125	161.60	140.75	139.90	133.90	76.20	295.00	S6.3(PN16)
150	185.30	160.80	159.90	153.90	86.20	336.00	S6.3(PN16)
De200	230.00	201.00	199.90	193.90	106.20	414.00	S6.3(PN16)
200	259.40	226.20	224.90	216.90	119.10	465.00	S6.3(PN16)
De250	287.90	251.30	249.90	241.40	131.65	515.50	S6.3(PN16)
250	314.80	281.20	280.10	276.00	147.00	582.00	S8(PN16)
300	354.00	316.70	314.90	307.00	164.30	643.00	S8(PN16)

Key Features of UPVC Cross for Industry

Four-way distribution/confluence: allows connections in four directions within a single plane for complex layouts.
Four solvent cement joints: provides reliable sealing on all four ports.
Robust structure: is one-piece injection molded with a reinforced junction for high pressure capacity.
Industrial-grade corrosion resistance: is suitable for chemical corrosive fluid transport systems.

Manufacturing Process of UPVC Cross for Industry

Each is integrally formed using complex multi-slide precision injection molds to ensure uniform wall thickness and smooth flow paths at the junction. All four sockets have precise ID, ovality, and chamfer machining.

Critical Process Parameters of UPVC Cross for Industry

Every is checked against these parameters:

Control of coaxiality and perpendicularity of the four sockets.
Precise control of mold and melt temperatures at the junction to prevent weld lines.
Precise machining of ID, ovality, and chamfer for each socket.

Raw Material Characteristics of UPVC Cross for Industry

Material: UPVC, industrial-grade resin, no plasticizers
High mechanical strength and internal pressure resistance
Outstanding chemical resistance
UPVC suitable up to 60°C; PVC-C version suitable up to 93°C

Typical Applications of UPVC Cross for Industry

handles multi-line distribution and collection in chemical piping systems.
The fitting provides multi-point distribution in industrial water treatment plants.
is used in chemical fluid distribution systems for electroplating and semiconductor industries.

Application Scenarios of UPVC Cross for Industry

Nodes requiring four-way distribution in industrial piping systems — is the standard fitting for these connections.
