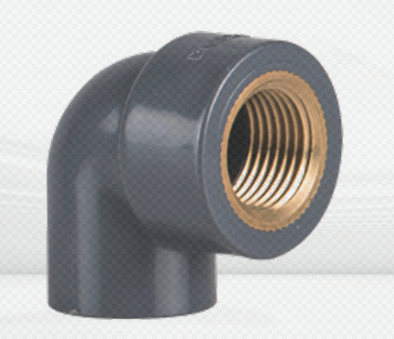

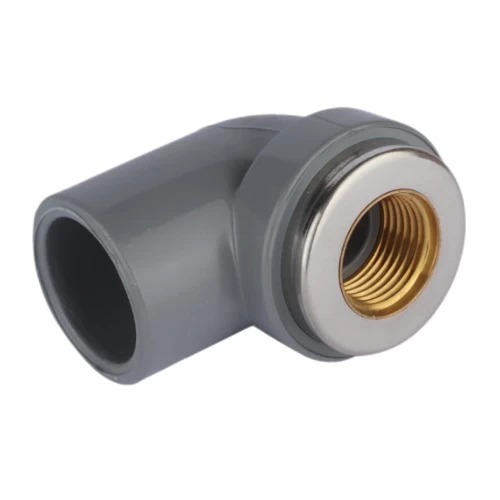

PVC-U/C Brass Female Threaded Elbow for Industry

Key Features

• Brass insert: high thread strength, wear resistant, reliable sealing.
• Solvent cement + threaded: plastic end permanently bonded; threaded end detachable.
• 90° turn: integrates directional change with metal threaded connection.
• Industrial-grade corrosion resistance: suitable for chemical corrosive fluid transport.

Manufacturing Process

Brass insert precisely positioned in mold during injection; overmolded with PVC-U/C melt. Socket precision machined; uniform bend wall thickness.

Critical Process Parameters

• Brass insert preheat temperature and positioning accuracy.
• Thread dimensional accuracy and form conform to standards.
• Wall thinning in bend ≤10%.
• Bonding strength between brass insert and PVC-U/C.

Raw Material Characteristics

• Body: PVC-U or PVC-C
• Thread insert: Brass
• PVC-U suitable ≤60°C; PVC-C suitable ≤93°C

Typical Applications

• Turning connections between chemical piping and metal male-threaded valves or instruments.
• Threaded interfaces requiring directional change in industrial water treatment systems.
• Pipe-to-hardware connections in electroplating and semiconductor industries.

Application Scenarios

• Turning and connecting to metal threaded fittings in industrial piping.
