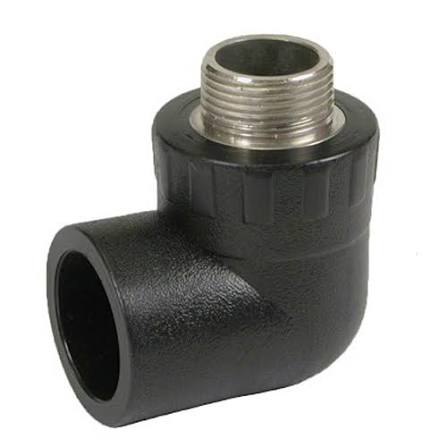

| Specification |
Value |
| Material | HDPE PE100 |
|---|
| Standard | ISO 4427 |
| Angle | 90 Degree |
| Connection | Quick Male Thread |
| Pressure Rating | PN10 / PN16 |
| Size Range | DN20 - DN630 |
Key Features
- 90° directional change minimizes flow resistance
- Socket fusion end ensures seamless seal with HDPE pipes
- Quick male thread allows rapid disassembly for maintenance
- Complies with ISO 4427 pressure standards
Typical Applications
- Industrial cooling water circulation systems
- Municipal water supply network retrofits
- Agricultural irrigation mainline branching
- Building water supply and drainage systems
Manufacturing Process
Injection molding process
- Melt temperature control: 200-220°C
- Mold cooling rate optimization
- Holding pressure: 70-100 MPa
- Dimensional tolerance per ISO 11922
Raw Material Characteristics
- Density: 0.950-0.965 g/cm³
- Melt Flow Index: 0.2-0.4 g/10min (190°C/5kg)
- Tensile Strength: ≥25 MPa
- Environmental Stress Crack Resistance: ≥5000h (EN ISO 1167)
- Directional changes in water treatment plants
- Corrosion-resistant branching in underground networks
- Low-pressure lines in desalination systems
- Branch connections for fire sprinkler systems
