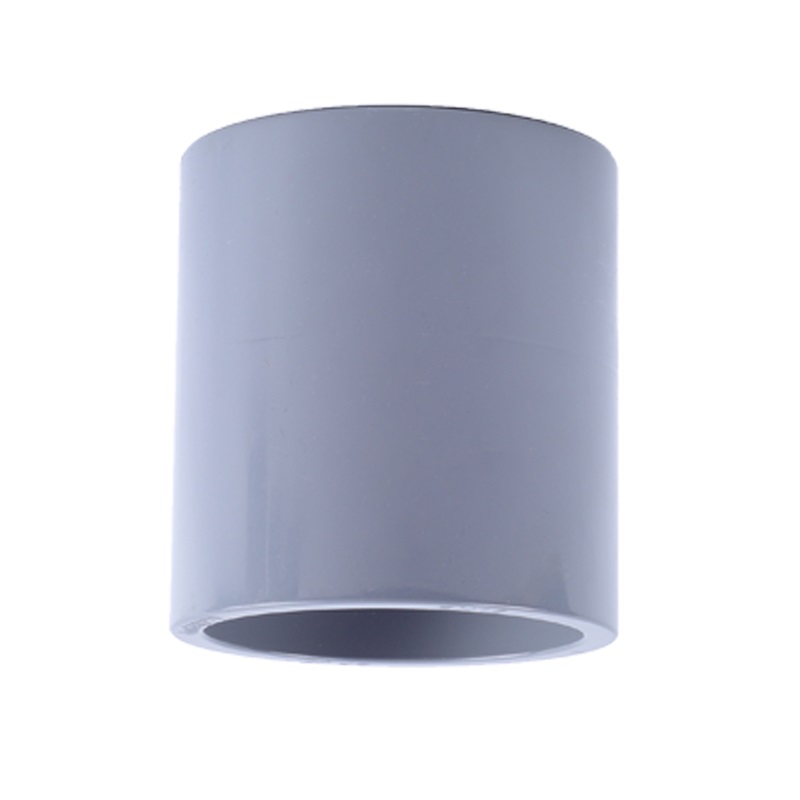

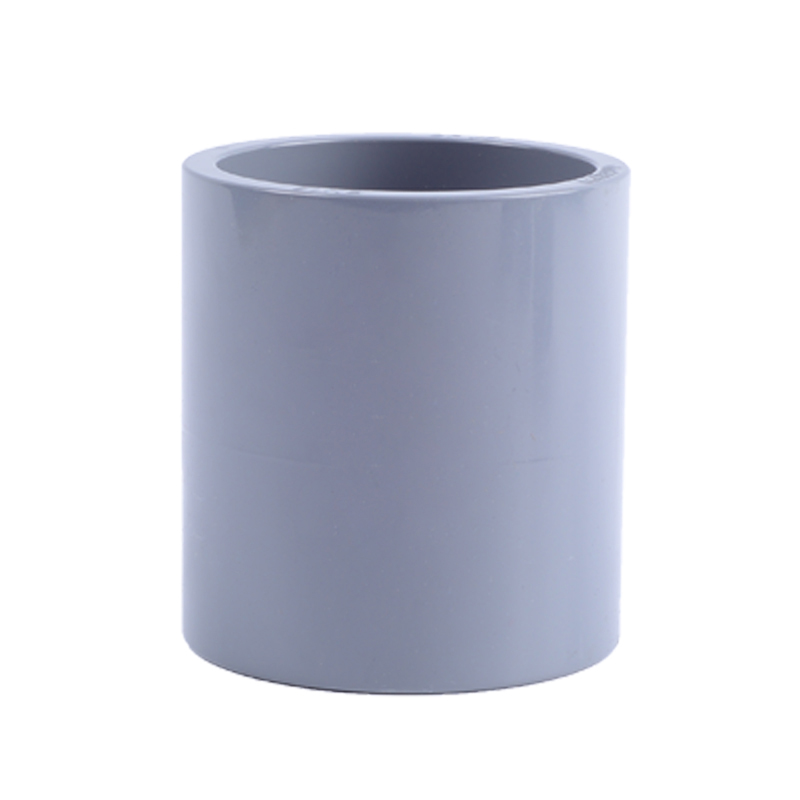

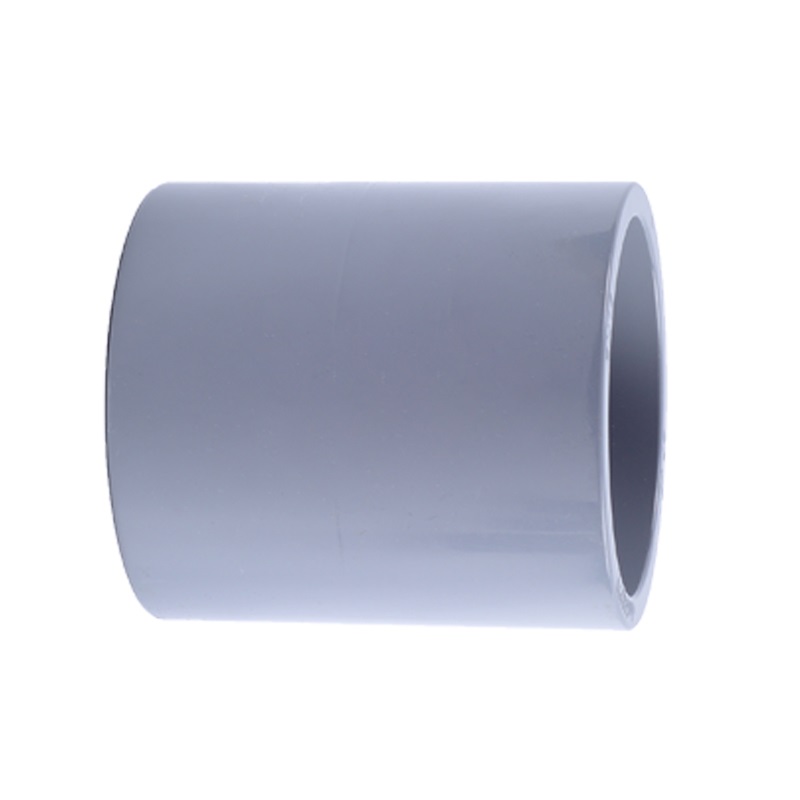

The CPVC Solvent Cement Coupler is a straight double-socket coupling in chlorinated polyvinyl chloride (CPVC) used to join two equal-size CPVC pipe lengths, with both ends bonded by CPVC solvent cement. The CPVC Solvent Cement Coupler forms a permanent full-bore glued joint in potable water and industrial corrosive-media lines without threads, gaskets or heat. Rated to 90°C, this CPVC solvent cement coupler keeps a smooth flow path and resists most acids, alkalis, salts and oxidizing media.
|

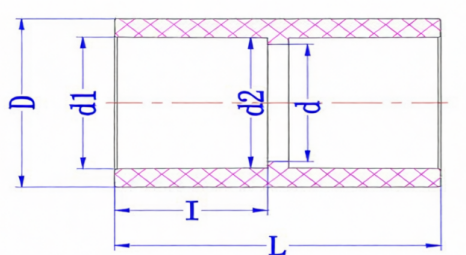

Specification
|
Design
|
|
|
Diameter
|
|
|
|
|
d1
|
d2
|
I
|
D
|
d
|
L
|
|
20
|
20.3
|
20.1
|
16.0
|
27.0
|
17.0
|
37.0
|
|
25
|
25.3
|
25.1
|
19.0
|
33.0
|
23.0
|
42.0
|
|
32
|
32.3
|
32.1
|
22.0
|
40.5
|
29.0
|
49.0
|
|
40
|
40.3
|
40.1
|
26.0
|
49.1
|
37.0
|
57.0
|
|
50
|
50.3
|
50.1
|
32.0
|
61.0
|
47.0
|
68.0
|
|
63
|
63.3
|
63.1
|
38.0
|
75.0
|
60.0
|
82.0
|
|
75
|
75.3
|
75.1
|
44.0
|
87.0
|
72.0
|
95.0
|
|
90
|
90.3
|
90.1
|
51.0
|
104.0
|
87.1
|
108.0
|
|
110
|
110.4
|
110.1
|
61.0
|
125.4
|
106.1
|
130.0
|
|
140
|
140.5
|
140.2
|
77.0
|
162.0
|
133.0
|
162.0
|
|
160
|
160.5
|
160.2
|
86.0
|
186.0
|
154.0
|
180.0
|
|
225
|
225.8
|
225.0
|
117.5
|
261.0
|
218.0
|
268.0
|
|
280
|
281.0
|
280.0
|
145.0
|
323.0
|
271.0
|
300.0
|
|
315
|
316.0
|
315.0
|
162.5
|
363.0
|
306.0
|
335.0
|
Key Features of CPVC Solvent Cement Coupler
- Straight double-socket coupling joins two equal-size CPVC pipe lengths in line.
- Both ends bond with CPVC solvent cement into one permanent, monolithic glued joint.
- Full-bore design keeps flow unrestricted with no pressure-drop shoulder.
- Long-term service up to 90°C; resists acids, alkalis, salts and oxidizing media.
- No threads, gaskets or hot work; smooth bore and flame-retardant CPVC.
Manufacturing Process of CPVC Solvent Cement Coupler
Each CPVC Solvent Cement Coupler is injection molded as a symmetric CPVC sleeve with a center stop, then both sockets are reamed and gauge-checked before solvent-cement bonding. Solvent cement is applied to the cleaned socket and pipe spigot, which are then held until the glued joint cures into a single continuous CPVC structure.
Critical Process Parameters of CPVC Solvent Cement Coupler
- CPVC compound is processed inside its narrow melt-temperature window to avoid degradation.
- Socket inner diameter and spigot interference are controlled to the CPVC solvent-cement fit tolerance.
- Cement coating is even and full-length; set and cure times follow the cement manufacturer schedule before pressure testing.
- Wall-thickness uniformity and roundness are checked to safeguard pressure rating.
- 100% visual and dimensional inspection, with batch pressure and hydrostatic testing.
Raw Material Characteristics of CPVC Solvent Cement Coupler
- Body in CPVC (chlorinated polyvinyl chloride), joined with CPVC solvent cement.
- Long-term service temperature up to 90°C, well above conventional UPVC.
- Excellent resistance to acids, alkalis, salts and many oxidizing media.
- Flame retardant and self-extinguishing with a high limiting oxygen index (LOI).
- Smooth non-scaling inner surface keeps flow efficient and biofilm low.
Typical Applications of CPVC Solvent Cement Coupler
- Straight joins and pipe extensions in potable hot and cold water systems.
- Repair and coupling of cut pipe runs in water treatment plants.
- In-line joins in acid, alkali and chemical transfer piping.
- Glued couplers in ultrapure water loops for semiconductor and pharma.
- Corrosive pipe runs in desalination and seawater service.
Application Scenarios of CPVC Solvent Cement Coupler
The CPVC Solvent Cement Coupler is the basic glued straight joiner used whenever two same-size CPVC pipe lengths meet in water supply or industrial corrosive piping.
