An ASTM SCH40 & SCH80 female threaded adapter manufactured from PVC-U or PVC-C, featuring a solvent cement socket on one end and all-plastic female threads on the other. Used for transition connections between PVC-U/C piping and metal male-threaded fittings or equipment in ASTM industrial piping systems.
Need help? Contact our technical support team

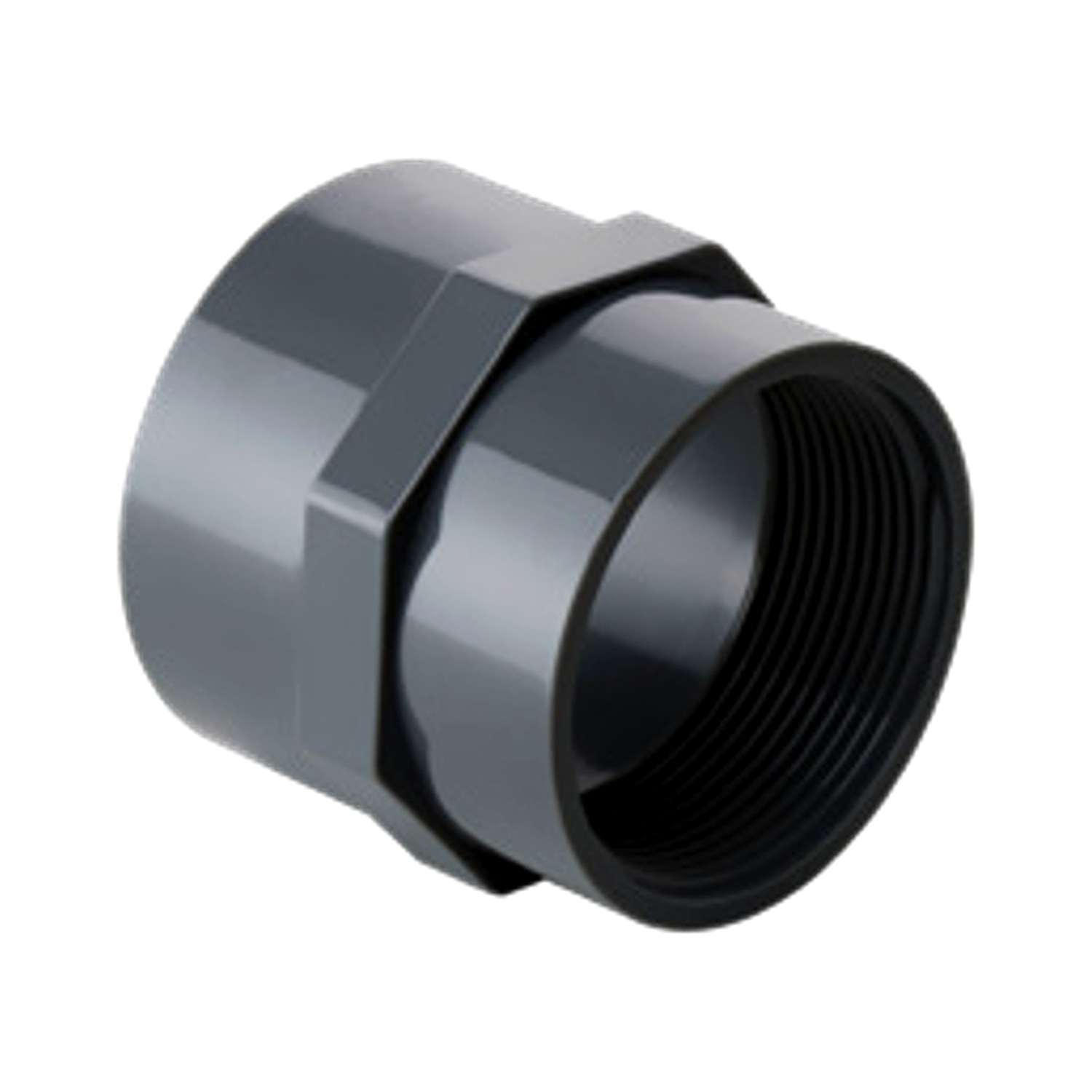

+86 1551559 6408The ASTM SCH40 & SCH80 UPVC Female Coupler is a solvent-cement socket adapter with female threads, designed for reliable transitions between UPVC pipe and metal male-threaded fittings in ASTM systems.
| Size | Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|
| D0 | D1 | D2 | D3 | d | T | L | Tr / NPT | |
| 1/2" | 29.70 | 21.54 | 21.23 | 29.22 | 16.00 | 23.22 | 40.22 | 1/2" |
| 3/4" | 35.30 | 26.87 | 26.57 | 34.97 | 20.60 | 26.40 | 44.40 | 3/4" |
| 1" | 43.70 | 33.66 | 33.27 | 43.35 | 26.00 | 29.57 | 49.60 | 1" |
| 1-1/4" | 53.10 | 42.42 | 42.04 | 52.58 | 36.00 | 32.75 | 55.25 | 1-1/4" |
| 1-1/2" | 59.90 | 48.56 | 48.11 | 59.45 | 41.00 | 35.93 | 58.45 | 1-1/2" |
| 2" | 73.10 | 60.63 | 60.17 | 72.10 | 52.00 | 39.10 | 66.60 | 2" |
| 2-1/2" | 88.00 | 73.38 | 72.85 | 87.30 | 64.00 | 45.45 | 77.50 | 2-1/2" |
| 3" | 105.30 | 89.31 | 88.70 | 104.60 | 78.00 | 48.63 | 83.65 | 3" |
| 4" | 132.00 | 114.76 | 114.07 | 131.65 | 102.50 | 58.15 | 99.70 | 4" |
Each is injection molded from UPVC with a socket on one end and female threads on the other, conforming to ASTM standards.
